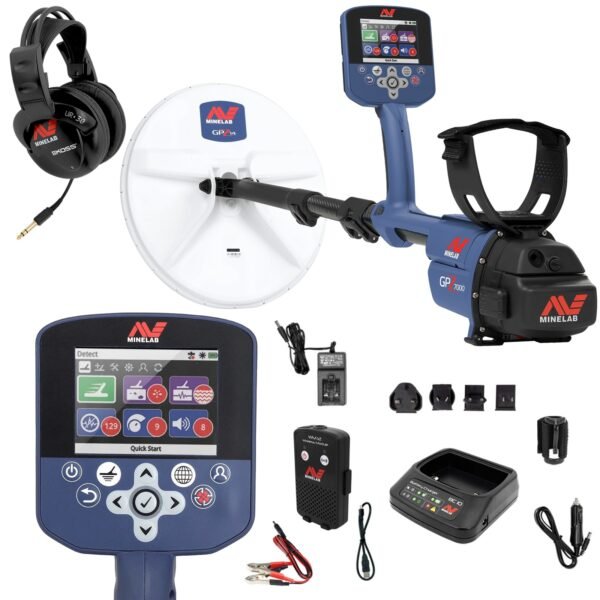

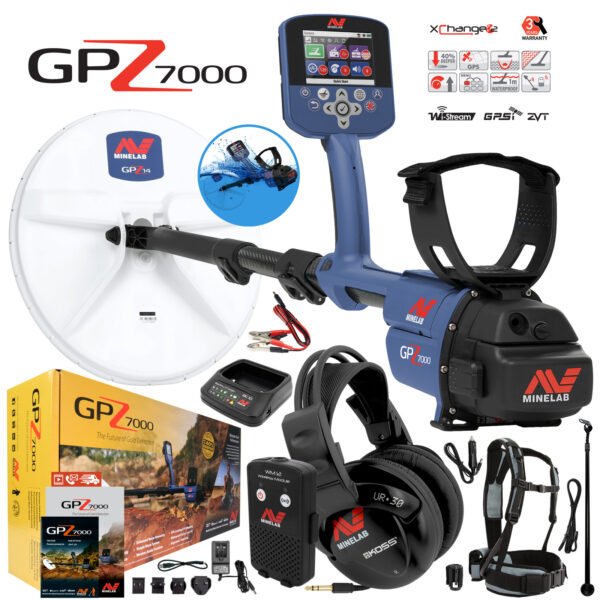

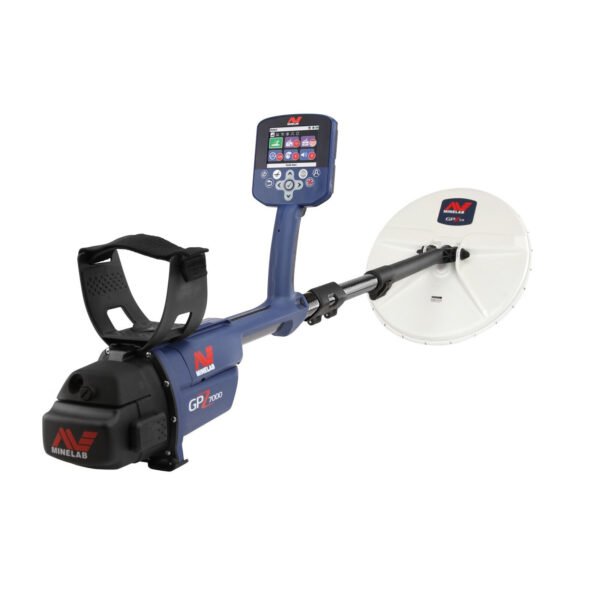

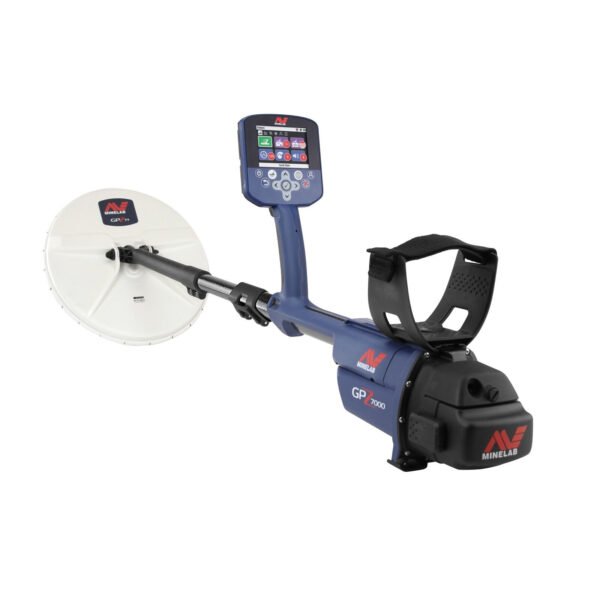

Minelab GPZ 7000 All Terrain Gold Metal Detector Zero Voltage Transmission ZVT

Description

Minelab GPZ 7000 – The Ultimate All-Terrain Gold Detector with ZVT Technology

Take your gold prospecting to new depths with the Minelab GPZ 7000. Powered by Zero Voltage Transmission (ZVT) technology, the GPZ 7000 delivers unmatched depth and sensitivity, allowing you to detect gold at extreme depths that traditional detectors simply cannot reach.

Designed for all-terrain use, this robust detector is perfect for serious gold hunters looking for large nuggets in tough conditions. From bedrock to soil, the GPZ 7000’s ZVT technology ensures you don’t miss a thing.

Key Features:

• ZVT Technology (Zero Voltage Transmission) – Detect gold deeper than ever before
• All-Terrain Use – Perfect for various terrains including mineralized ground
• Super-D Smart Coil – Optimized for high sensitivity and large target detection
• GPS & Mapping – Mark hotspots and track your finds with built-in GPS
• Long-lasting Rechargeable Battery – Up to 8 hours of continuous operation
• Wireless Audio – Enjoy clear, uninterrupted sound with wireless headphones
• Weatherproof Design – Built for rugged outdoor conditions, whether wet or dry

Product Specs:

• Technology: ZVT (Zero Voltage Transmission)
• Operating Frequency: 7000 Hz
• Coil: 14″ Super-D Smart Coil
• Battery Type: Li-ion rechargeable
• Battery Life: Up to 8 hours
• Weight: Approx. 2.2 kg (4.8 lbs)
• Audio: Wireless audio via Pro-Sonic wireless module
• Water Resistance: Waterproof coil, unit is splash-proof
• Dimensions (Lower Shaft): Adjustable from 100 cm to 135 cm (39.4″ to 53.1″)

Why Choose the Minelab GPZ 7000?

• Deepest Gold Detection: ZVT technology pushes detection depth to new levels, helping you find gold that others miss.
• All-Terrain Capability: Whether in rocky terrain, riverbeds, or dry desert, this detector excels everywhere.
• Maximum Efficiency: With GPS, wireless audio, and long battery life, the GPZ 7000 is ready for all-day detecting sessions.

Maximize your gold-hunting potential with the Minelab GPZ 7000—the most powerful and versatile gold detector available today.

Fast shipping from the USA – Start your deep gold search today!

Extreme Gold Depth: So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before.

Maximum Gold Sensitivity: The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.

Precision Ground Balance: Most gold is buried in the mineralised ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.

Enhanced Noise Immunity: The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference.

Simple Menu System: The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold.

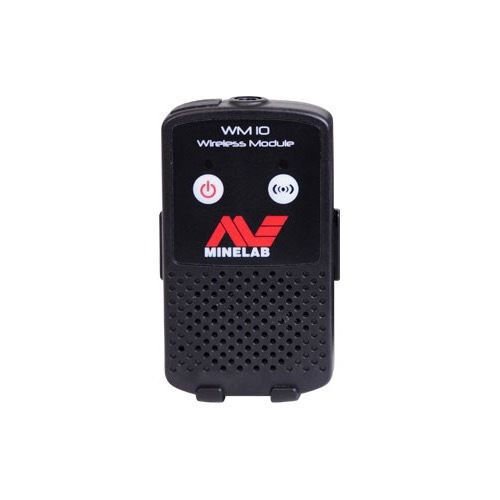

Wireless Audio Freedom: Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.

GPS Locating and PC Mapping: See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.

Waterproof Coil to 3 ft: The GPZ 14 coil is waterproof and submersible to a depth of 3 ft. You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.

Zero Voltage Transmission (ZVT) creates ultra‑constant high-power opposite polarity magnetic fields, increasing gold sensitivity. This innovative technology detects gold nuggets at extreme depths.

The Super‑D smart coil consists of a central transmit winding and two outer receive windings. This configuration greatly decreases interference from magnetic soils, reducing ground noise.

GPSi uses a u‑blox GPS engine to integrate location and time data with detector settings. This creates WayPoint, FindPoint and GeoHunt files to use with XChange 2.

Wi‑Stream uses low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms). This provides reliability and maximum sound quality.

Specifications

• Application: Gold Prospecting (Waterproof coil to 3ft)
• Technology: ZVT
• Frequency/Transmission: Zero Voltage Transmission (ZVT)
• Coil (standard): 14″ x 13″ Super‑D Configuration with skidplate (waterproof to 3 ft)
• Audio Output: 1/4″ non waterproof socket, Wi‑Stream wireless signal transmission

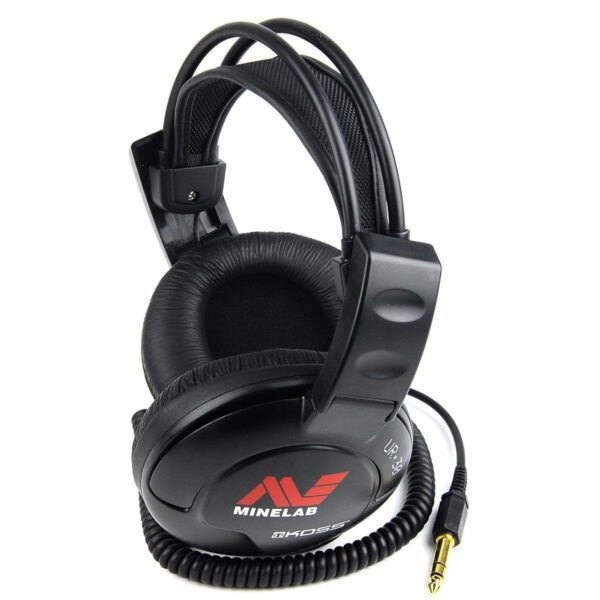

• Headphones Supplied: KOSS UR 30 100 ohm with 6.3 mm plug (1/4-inch) (non waterproof)

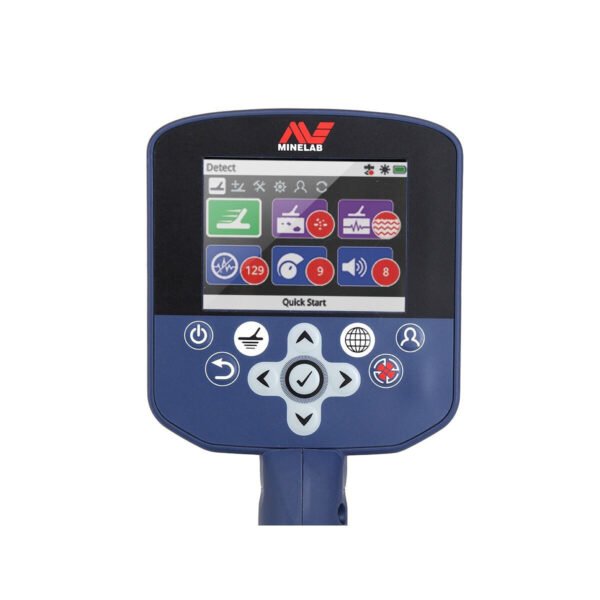

• Visual Display: Full colour LCD (320 x 240 pixels)
• Backlight: Yes
• USB Connectivity: USB interface for XChange 2 PC software
• Detect Modes: Gold Mode (High Yield, General, Extra Deep) Ground Type (Normal, Difficult, Severe)
• Discrimination: All Metal
• Audio tone: 1-100
• Ground Balance: Auto and Manual (Quick‑Trak trigger button)
• Sensitivity Adjust: Level (1-20)
• Tune / Noise Cancel: Auto and Manual (256 channels)
• Threshold: Level (1-50) Pitch (1-100)
• Target Volume Adjust: Range (1-20) Limit (1-20)

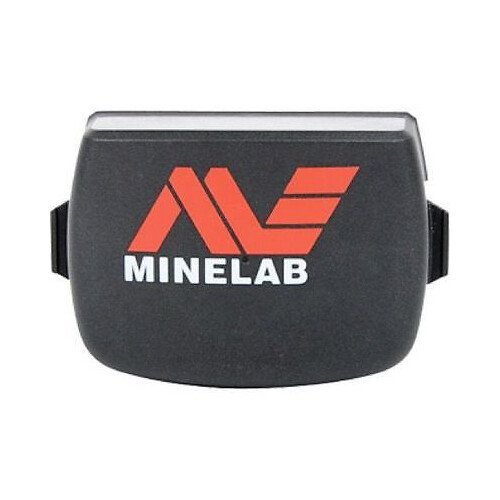

• Battery: Li-Ion Rechargeable Pack (7.2V DC, 72Wh)
• Low battery alert: Yes
• Length: Collapsed – 46.1”, Laid flat packed position – 51.3”, Extended – 60.1”, Laid flat packed position – 65.0”
• Weight: 7.32 lb (Including GPZ 14 coil, skidplate and 72Wh battery)
