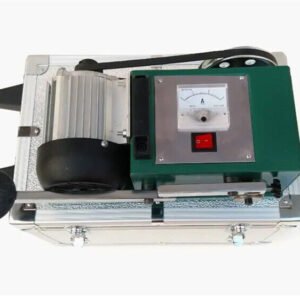

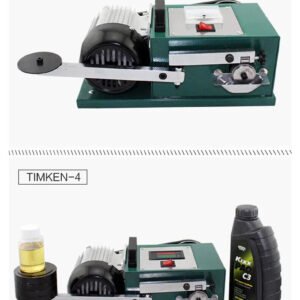

Lubricating Oil Anti-friction And Wear Testing Machine Equipment Abrasion Tester

Description

Products Description

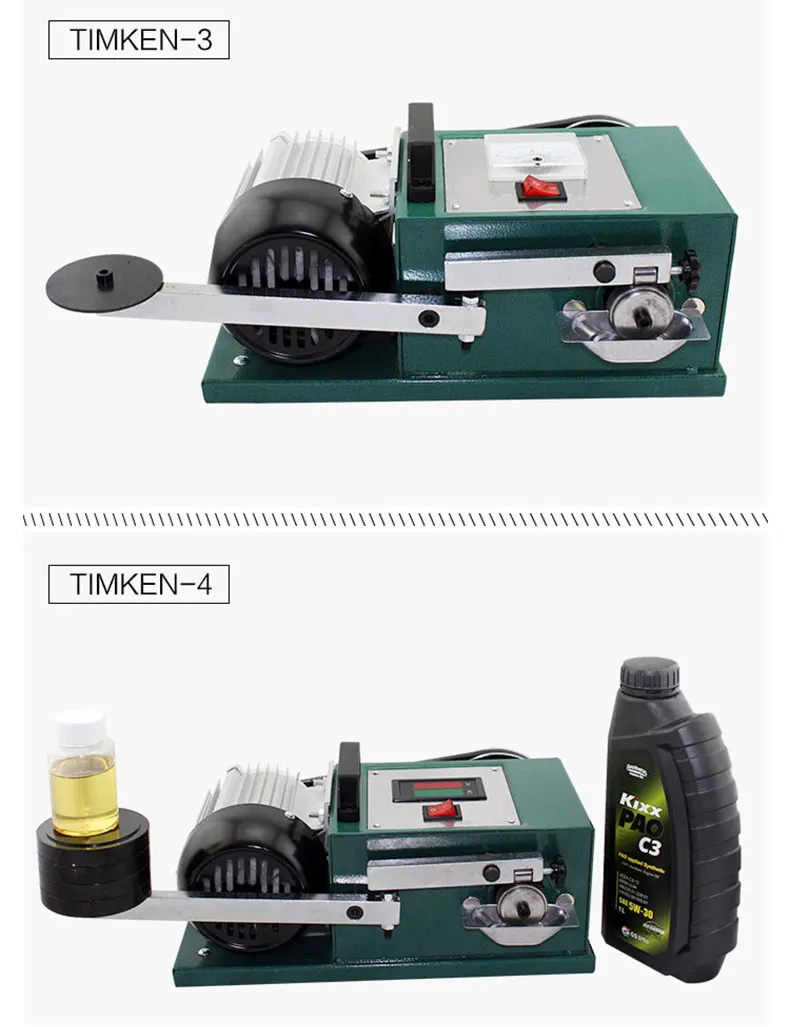

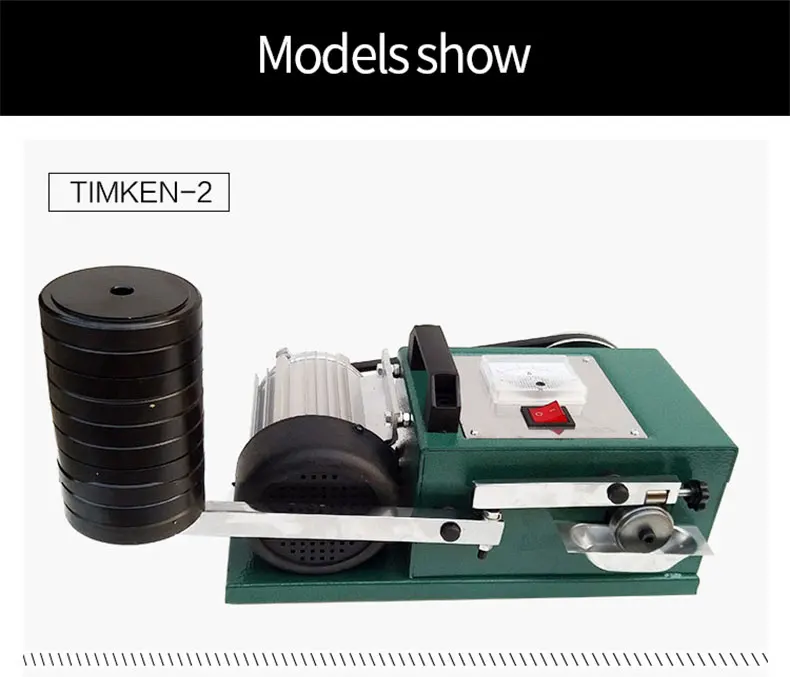

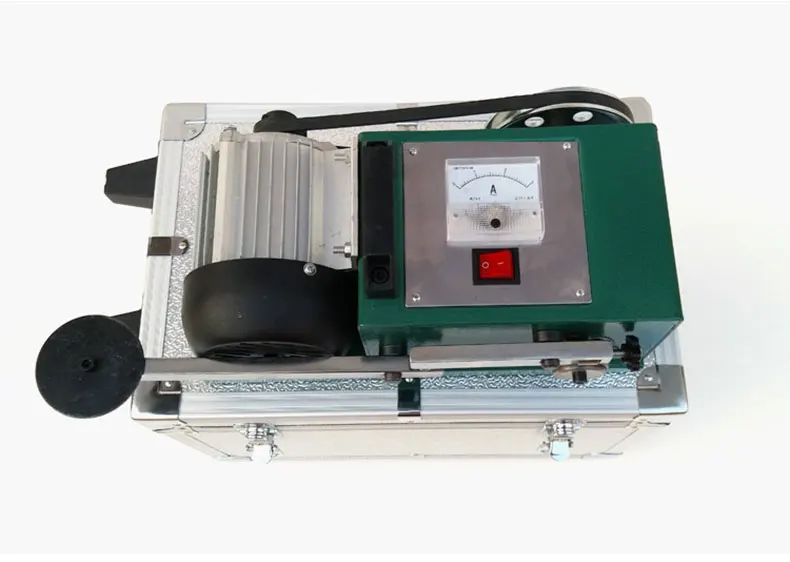

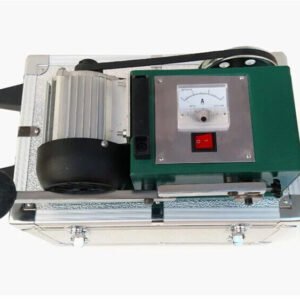

The new lubricating oil anti-wear testing machine, referred to as the anti-wear testing machine, is based on the test principle of the American ring block testing machine (Timken testing machine), and the main functions are simplified. Intuitively reflect the anti-wear and anti-friction performance of lubricating oil. The main working part is composed of a grinding ring that rotates with the main shaft and a fixed grinding column pressed on the grinding ring. During the test, under different pressure conditions, the friction between the grinding ring and the grinding column is generated. Sliding friction, so it is also called a simplified version of the ring block testing machine (Timken testing machine) The anti-wear testing machine can test the strength of the lubricating oil film and the strength (quantitative reflection) of the anti-wear protective layer formed by the anti-wear agent on the metal friction contact surface through the force system composed of weights and levers, and its extreme pressure (OK value) has a certain approximate correspondence with the four-ball machine (Pa value); at the same time, through the motor load ammeter on the instrument panel, the friction change of the friction surface can be reflected (qualitative reflection).

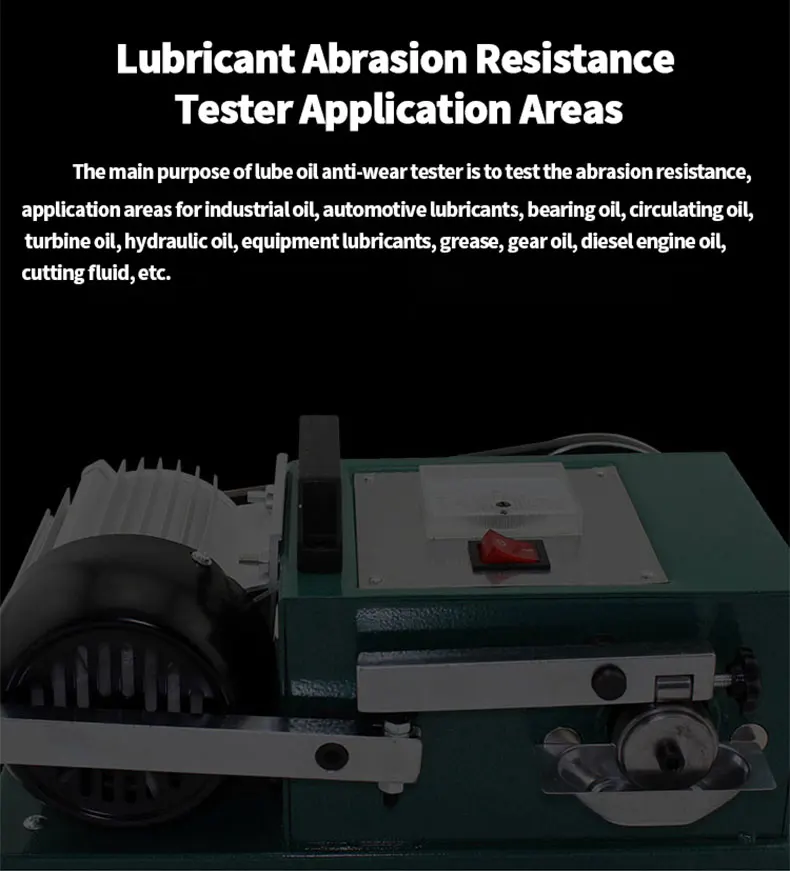

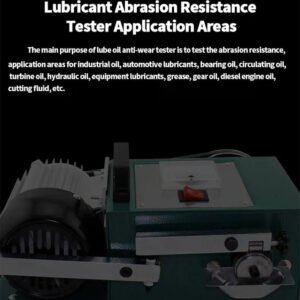

Because the anti-wear testing machine can quickly and concisely reflect the anti-wear and anti-friction properties of lubricating oil, it is often used in the production, research and development and promotion of lubricating oil or anti-wear agent with better anti-wear performance.

Product Paramenters

Lubricant Testing Machine Parameters

Name

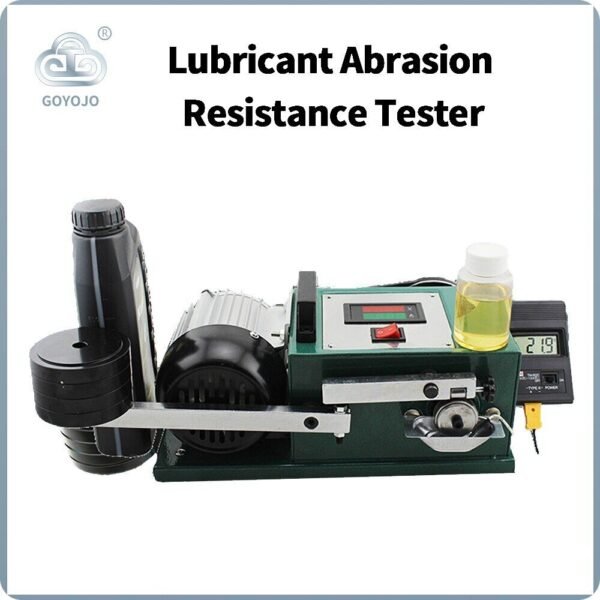

LubricantAbrasion Resistance Tester

Standard

CE ASTM CQ AFM

Power

230W / 280W

Processing, accuracy

0.01 mm

Display method

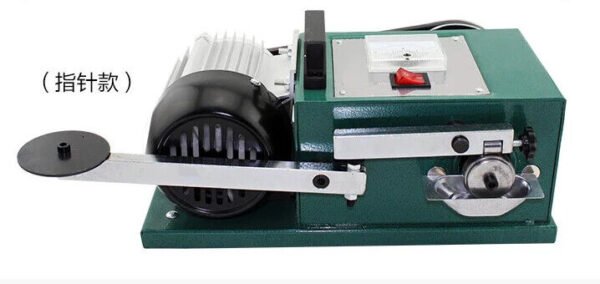

Pointer/Digital display

L ever ratio

13.745

Machine weight

23kg

Ball size

14*14mm

Voltage

220V / 110V

Machine Size

340*200*1 70mm

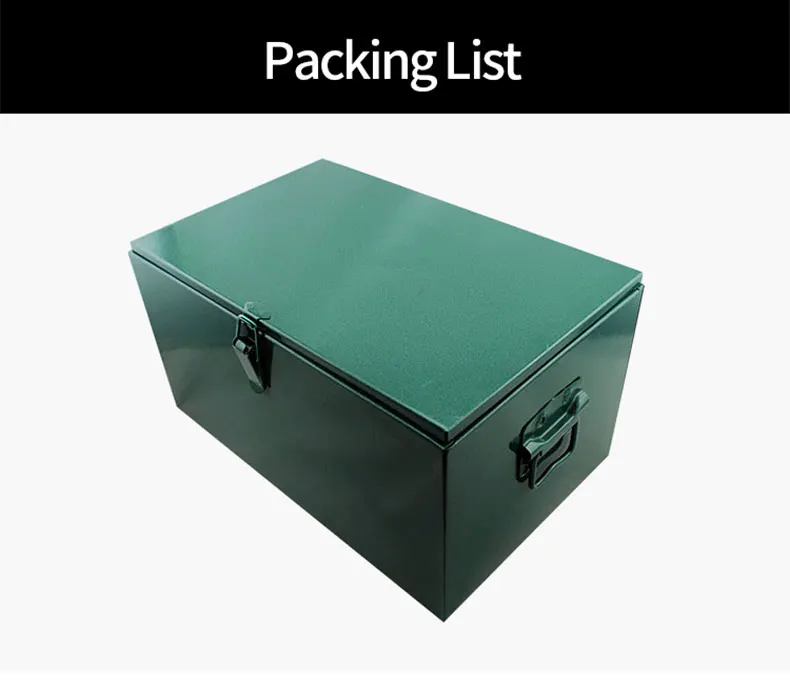

lron box packing size

400*250*210mm

Air box packing size

480*290*270mm

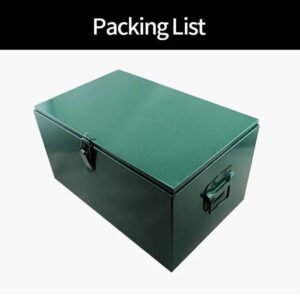

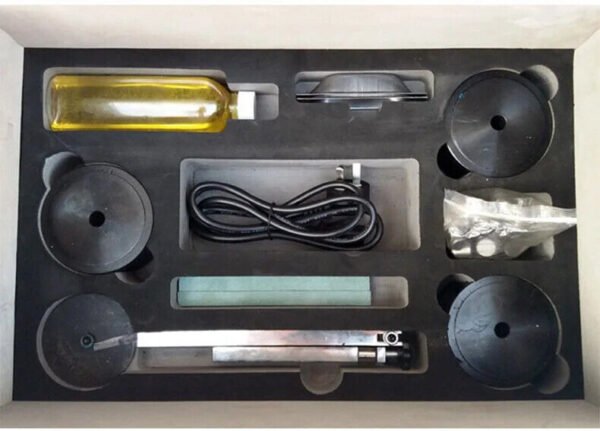

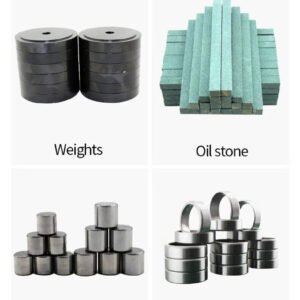

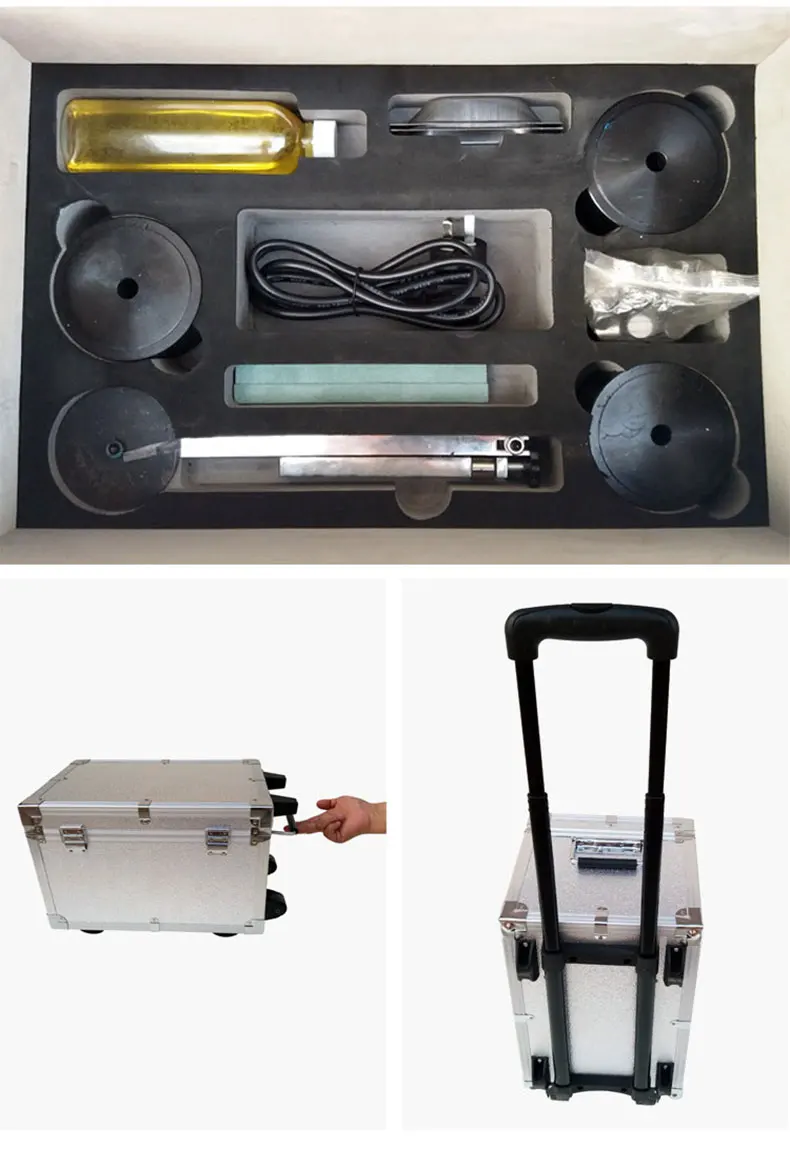

Product Packing List
