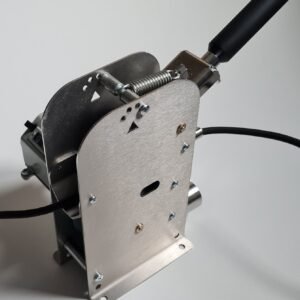

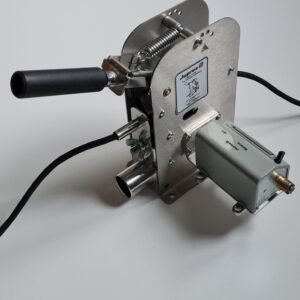

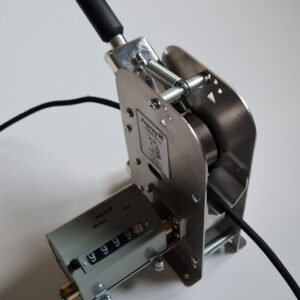

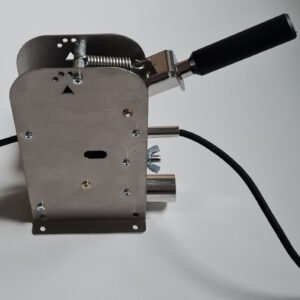

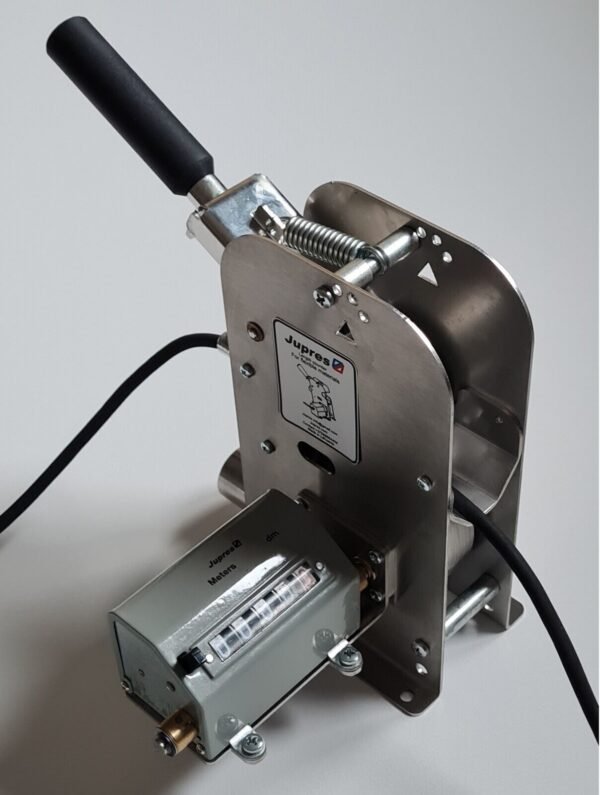

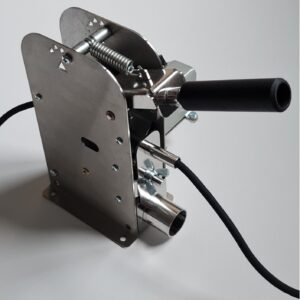

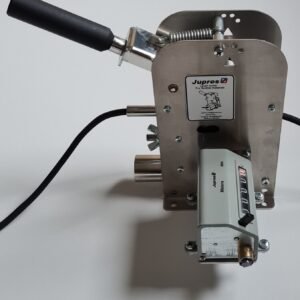

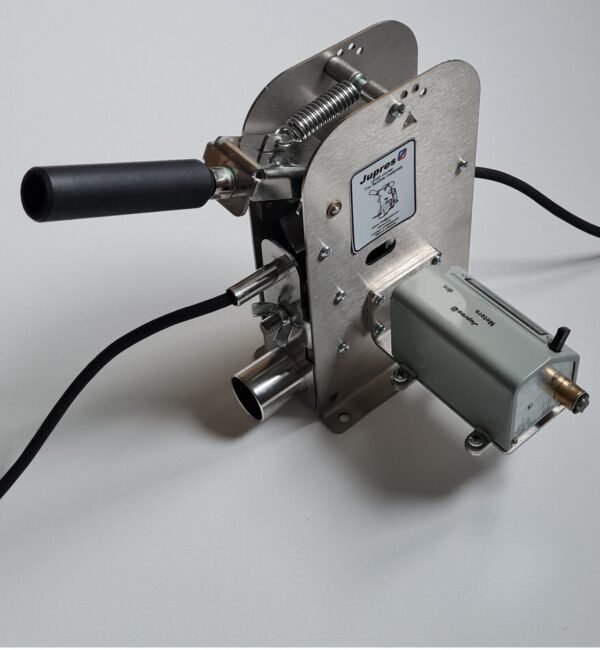

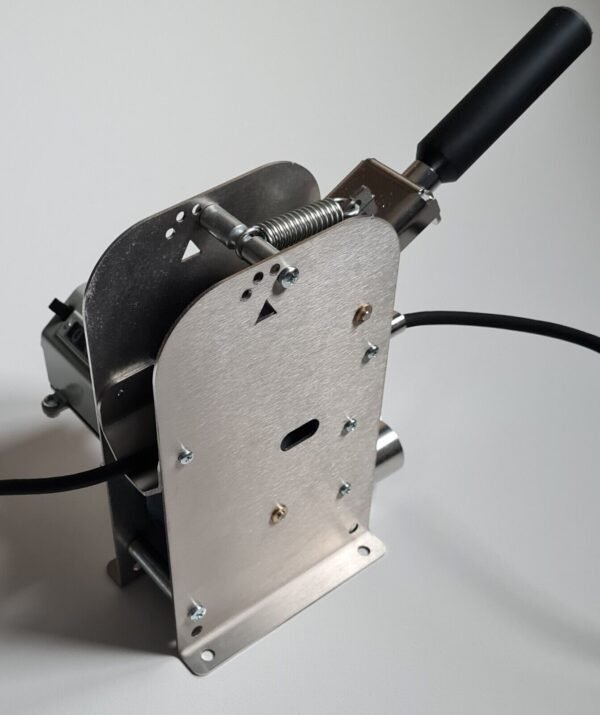

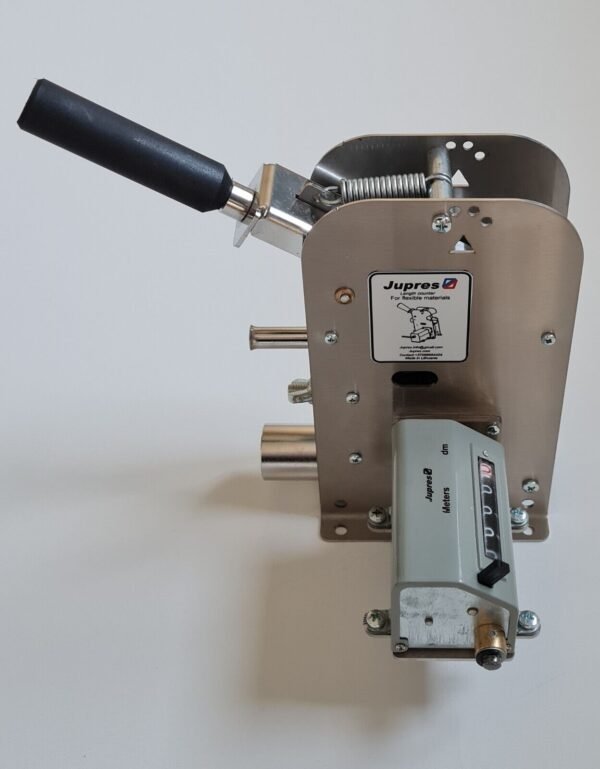

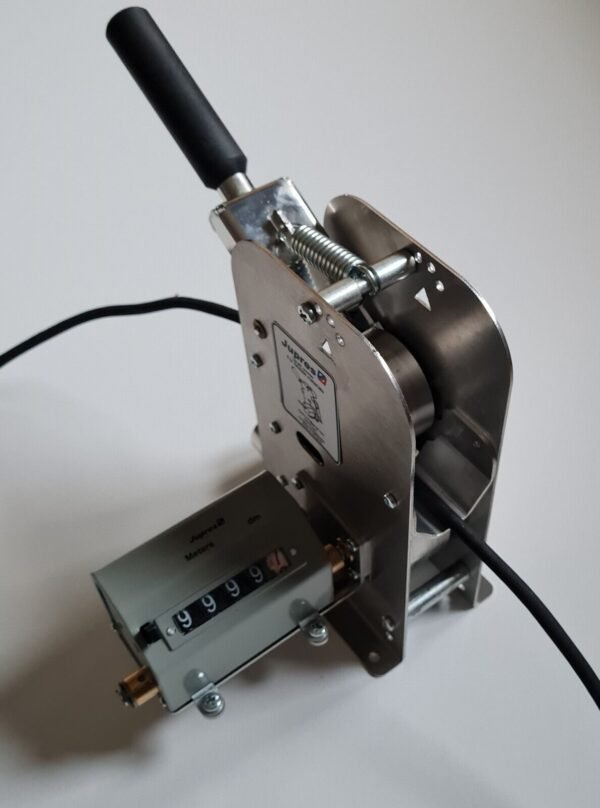

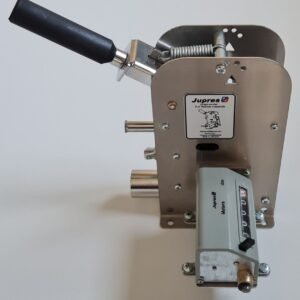

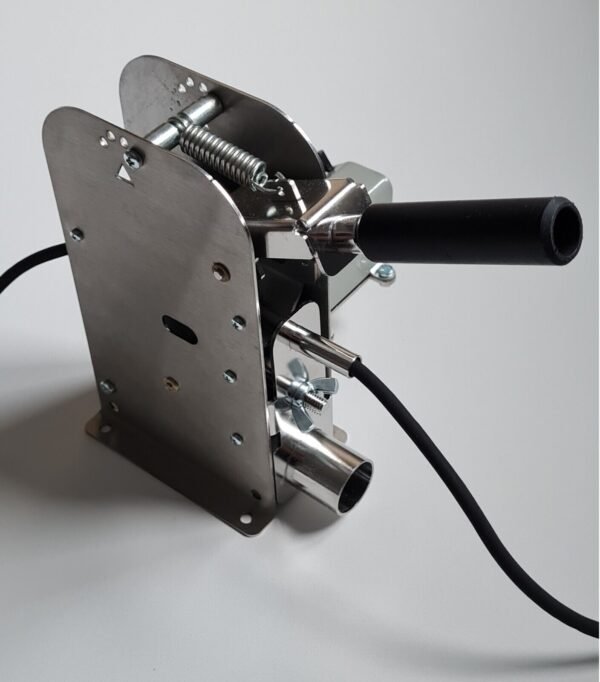

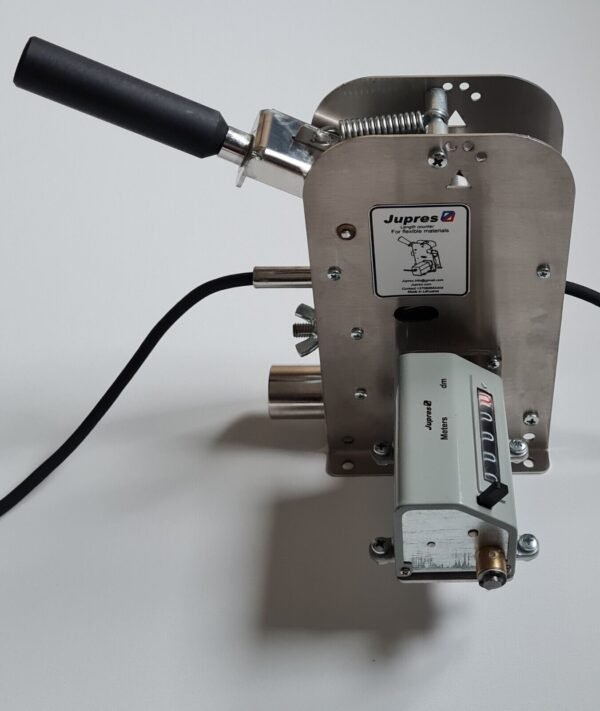

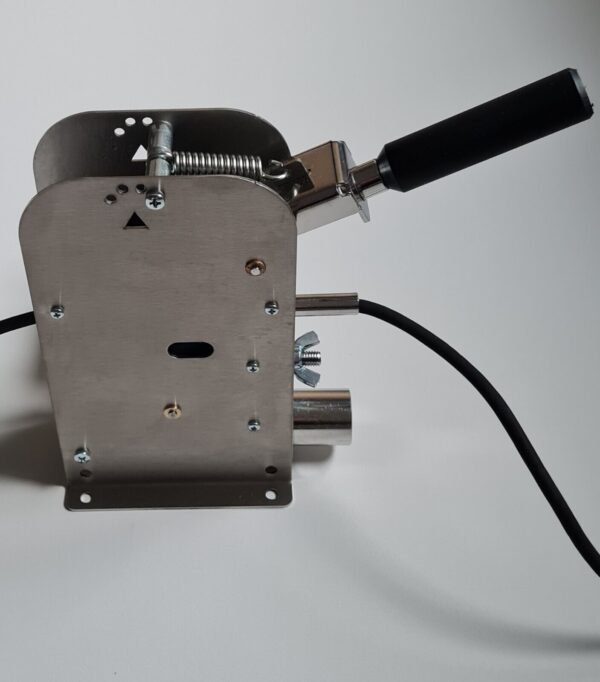

Cable Wire Length Counter VS-06

Original
solution , strong stainless steel construction ,springs adjustment,designed for
long life.

This cable,rope,wire,hose and others flexible materials
counter is an accurate, easy-to-use measuring machine for less than 20mm
(0,787inch) diameter wire ,rope, hose.

 With
one turn of the knob, the rope counter resets to ZERO. The rope counter’s
serrated wheel along with it’s  steel pressure spring guarantees an
accurate reading without the hassle of slipping.You can adjust the clamping
force of the material to be measured by setting or releasing the spring
tension.
You can easily change the diameter of the material being measured.
The main wheel can be easily replaced for this measuring device, depending on
the material to be measured.

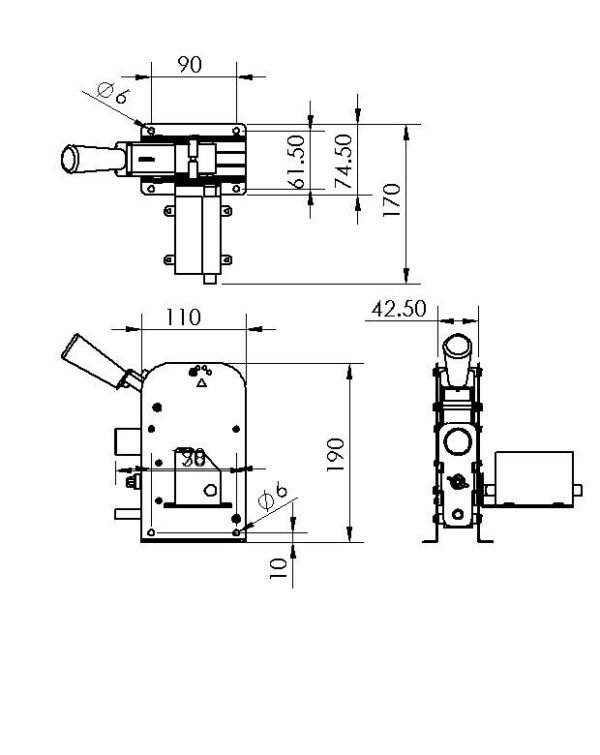

The device has additional holes for easy attachment to a table or other
construction stand.

Two
types of counters are produced: metric and feet   Stainless steel
construction. This counter must be mounted on a stand(stand not include).

We can ship the device to any country in the world within 7 days.
After payment, we prepare the parcel within 1 day.
You can pay easily, by bank transfer, credit card or through the Pay Pal
system.

• Accurate for metric counter to 0,5%
• Division value 1dm(10cm)
• Max measure length 9999m
• Accommodates a wide variety of
  flexible materials, from 0.4 to 20 mm diameter
• Quickly interchangeable guide
  tubes with I.D.s of 7mm and 20 mm afford accurate guiding of many hard to
  measure material
• Max speed 100m/min
• Convenient release handles for
  quick and easy loading
• Measures wire rope and similar
  stiff materials
• Stainless  steel used
  for  surfaces subject to wear by material’s passage

In
package include:          Length counter
………….1pcs




Instruction Manual……1pcs
