Digital Water Flow Meter with G3/4 Thread Water Flow Sensor For Temp &Water Flow

Description

Description

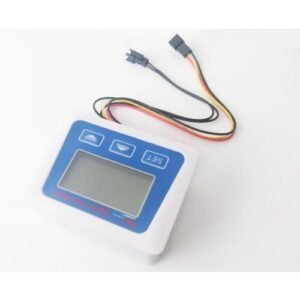

Digital Water Flow Meter with G3/4 Thread Water Flow Sensor Displays Temperature and Water Flow

Attention:

– It can be used only if there is water pressure, and the pressure should be over 0.2kg.

– The display screen can only be used with our customized low-power flow meter. When the screen is used with flow meters by other produces, the quality of the flow meters cannot be guaranteed. The screen can display water flow, instantaneous flow, temperature and total flow. However, due to the different frequency of flow meters of different sizes, it is necessary to adjust the K value constant of the display according to different flow meters when using it to display the accurate flow value.

Features:

– Digital water flow meter enables low power consumption

– It can display water flow

– Temperature can be displayed

– It comes with a water flow sensor

Digital Flow Meter:

– Item name: Digital water meter

– Measuring range: 0.1-9999L

– Voltage: DC 5V

– Temperature display range: -99° to 999°

– Number of buttons: 3

– Interface model: SM-3P and SM-2P

FS300A Water Flow Sensor:

– Model number: FS300A

– Connector size: G3/4 thread

– Operating voltage range: DC 3.5-24V

– Inner diameter/outer diameter: 16mm/26mm

– Thread length: 17mm

– Material: Nylon

– Minimum rated operating voltage: DC 5-18V

– Flow range: Within 2-60L/min±5%

– Pulse output ratio: 50±10%

– Insulation resistance: >100MΩ

– Sealing: Seal each hole, add 1.7Mpa to test for 1 minute and there is no leakage or deformation

– Flow pulse characteristics: f=(6*Q) ±3%, Q=L/min, that is, 360 pulses per liter of water

Package Included:

– 1 x Digital flow meter

– 1 x Water flow sensor

– 1 x M8 probe

Note:

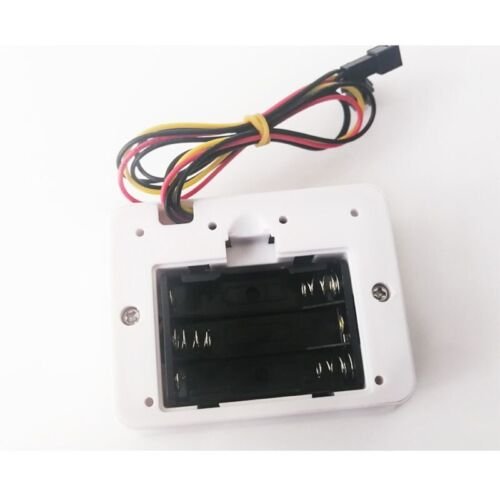

– It is powered by batteries. Batteries are not included in the package.
